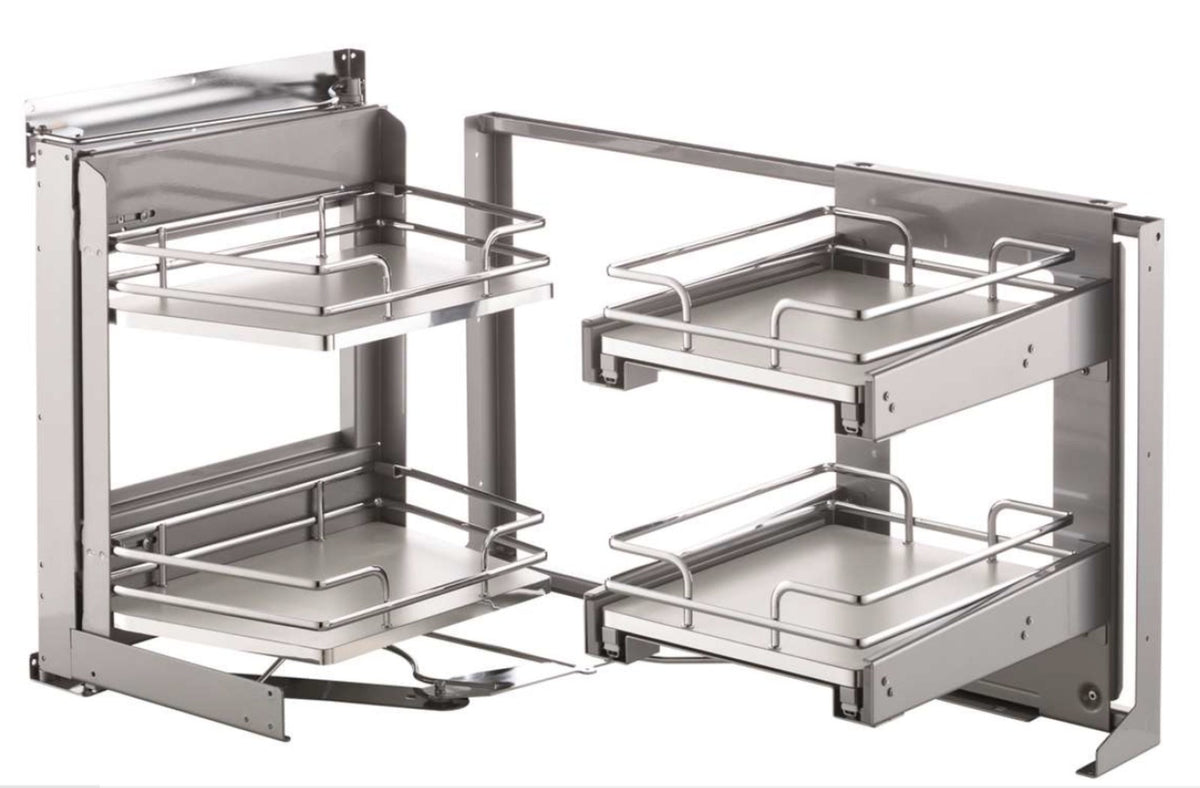

VIBO Galaxy Smart Corner Soft-Close Pull-Out Corner Unit | Galaxy 系列地櫃轉角聯動拉籃套裝帶阻尼系統

The corner you could never reach, now pulls itself out to meet you. Galaxy series Smart Corner by VIBO — 100% made in Italy.

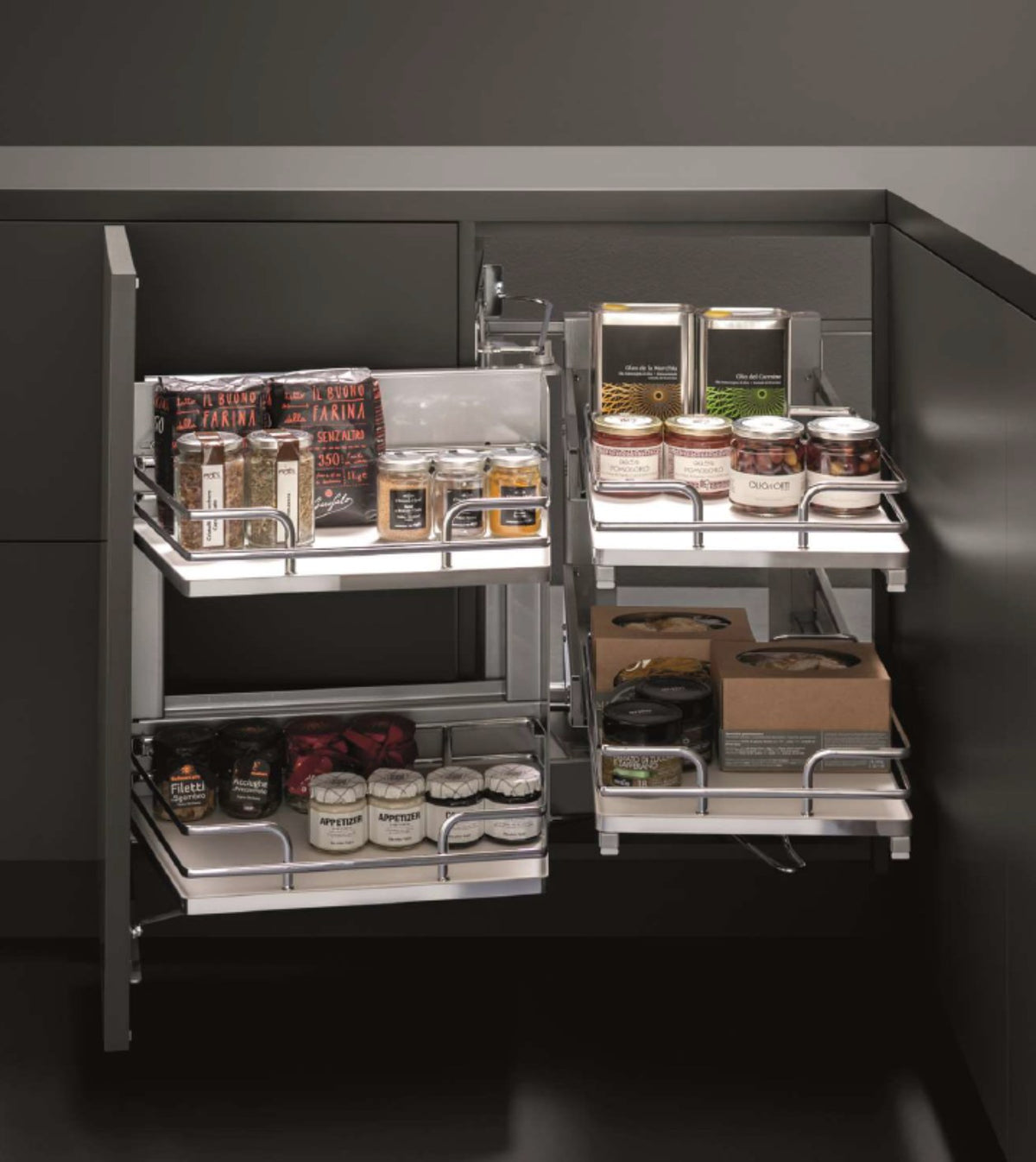

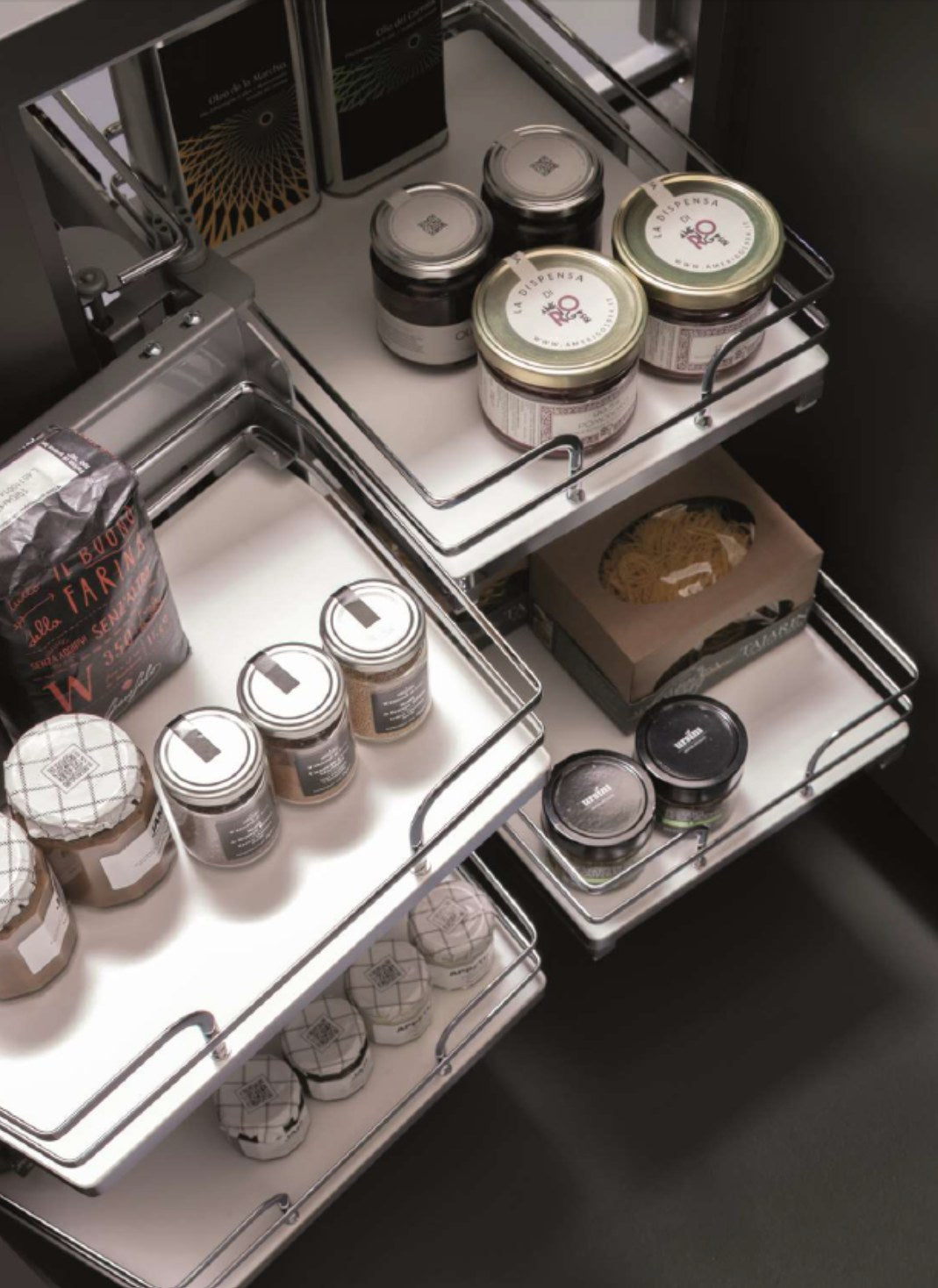

Open the cabinet door and the front pair of baskets swings out; as it does, it drags the rear pair sideways and outwards, clear of the carcase. Every item in the corner becomes visible and within arm's reach — and because the two rear baskets run on full-extension slides, each one can still be pulled out individually at full length once the unit is open. Soft-close damping is built into both the structure and the internal baskets, so the whole assembly returns quietly under its own control.

打開櫃門，外部的一組拉籃隨門擺出，同時聯動櫃內後方的另一組拉籃向橫滑動並向外伸出，令轉角深處的物品變得觸手可及、清晰可見。內部兩層掛籃採用全拉伸滑軌，套裝完全開啟後仍可分別全拉出。框架及內部掛籃均加入自關緩衝功能，關閉時安靜順暢。

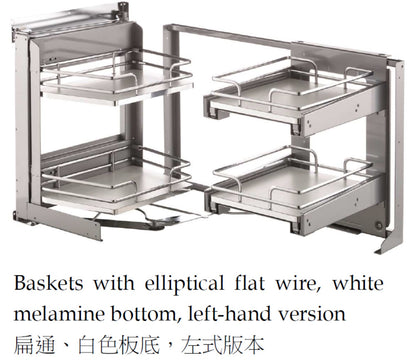

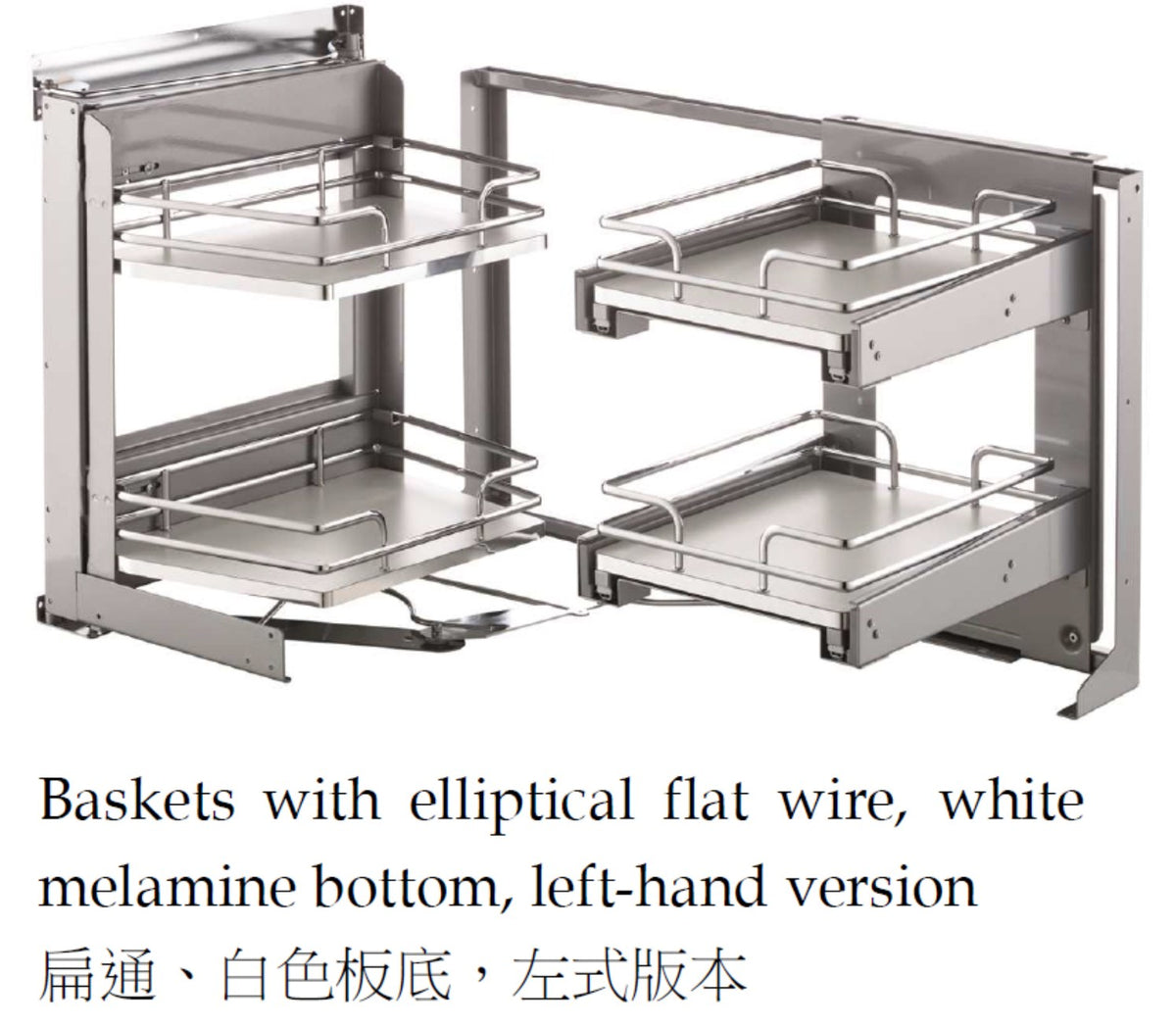

⚠️ Non-reversible — specify left-hand or right-hand 分左式及右式，不可調換

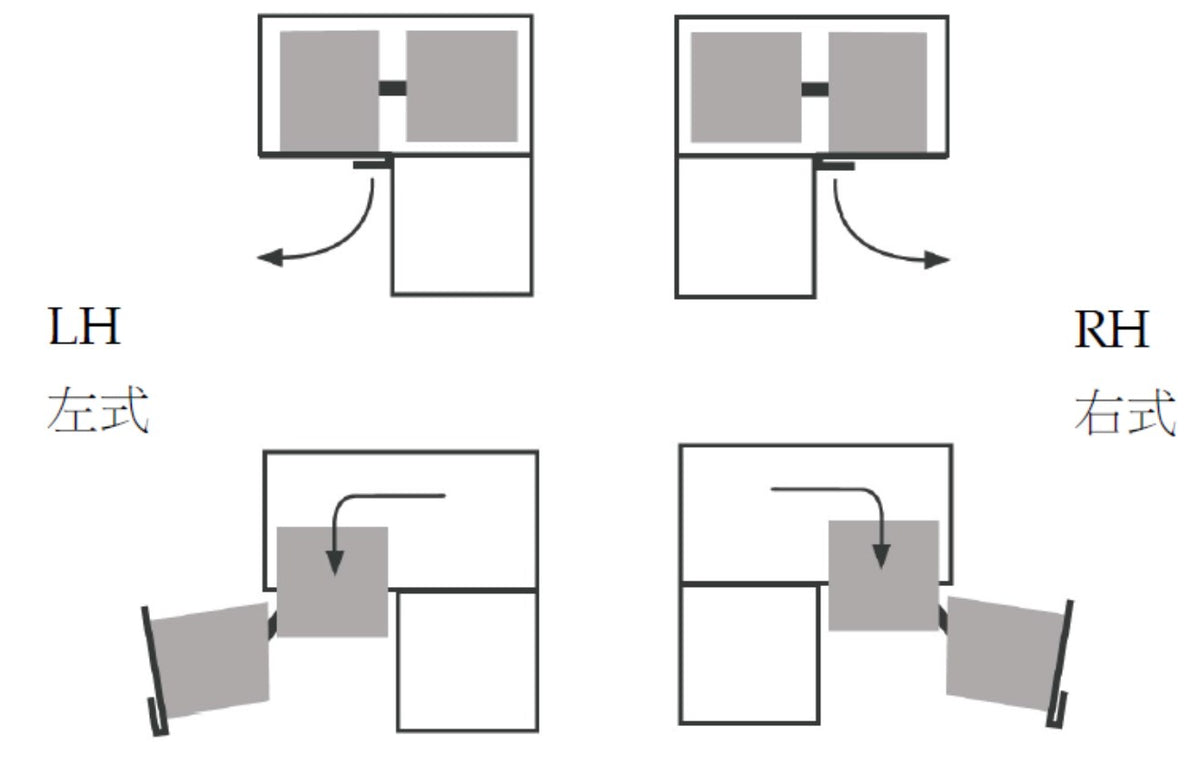

The mechanism is handed and cannot be converted on site. Standing in front of the corner cabinet, choose the version that matches the direction the door opens: left-hand (LH) for a door hinged to swing to the left, right-hand (RH) for a door hinged to swing to the right.
本產品分左式及右式，不可於現場調換。請按櫃門開啟方向選擇：櫃門向左開選左式（LH），櫃門向右開選右式（RH）。

Technical Specifications | 技術規格

Applications | 應用場合

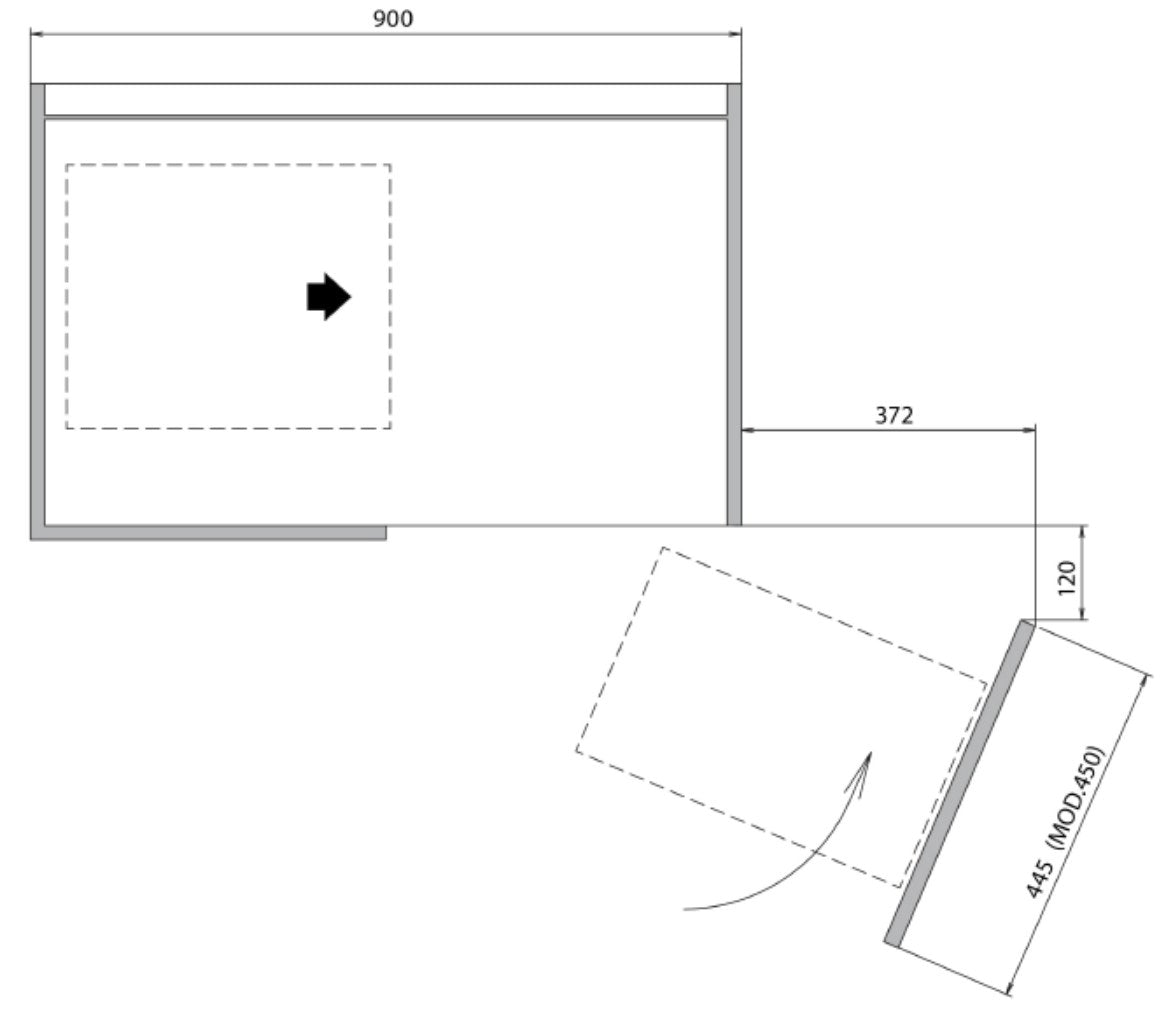

L-shaped kitchen base cabinets, blind corner units, pantry and utility corners, and any 900 mm corner carcase with a 450 mm door where the corner would otherwise be dead storage.
L 形廚房地櫃、轉角死角櫃、儲物及工作間轉角位，適用於 900 mm 寬櫃體配 450 mm 門板之轉角櫃。

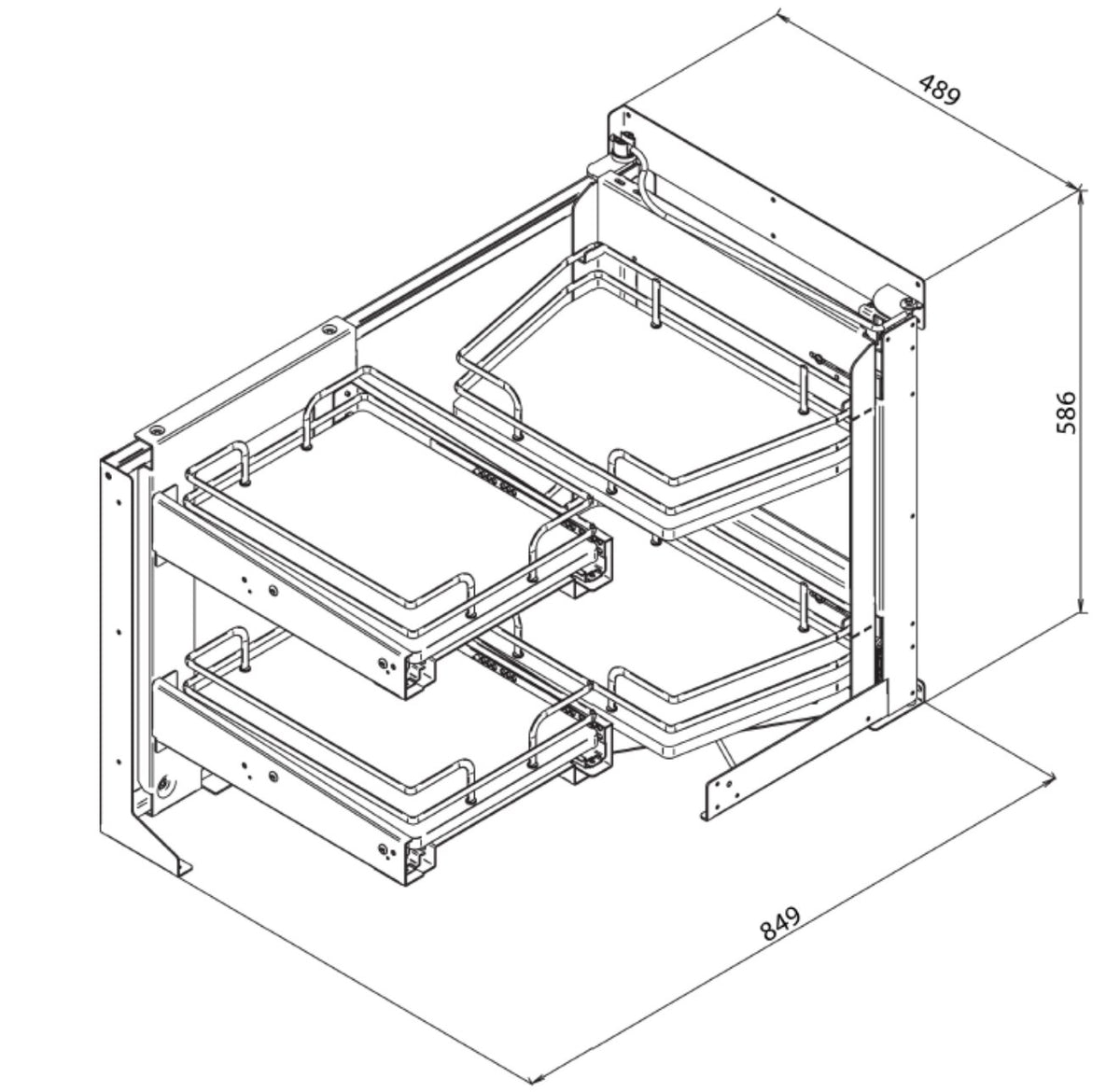

Dimensions are nominal and stated in millimetres. Please confirm cabinet width, door panel width and hinge side against your joinery before ordering — the unit is non-reversible. | 尺寸以毫米標示並屬標稱值。本產品不可調換左右式，訂購前請按櫃體核對櫃身寬度、門板寬度及門鉸方向。
