VIBO AMBROGIO Side-Mounted Pull-Down Wardrobe Lift | AMBROGIO 側裝下拉式衣櫃升降拉架

Brings the top rail down to you, and pulls itself back up. AMBROGIO side-mounted wardrobe lift by VIBO — 100% made in Italy.

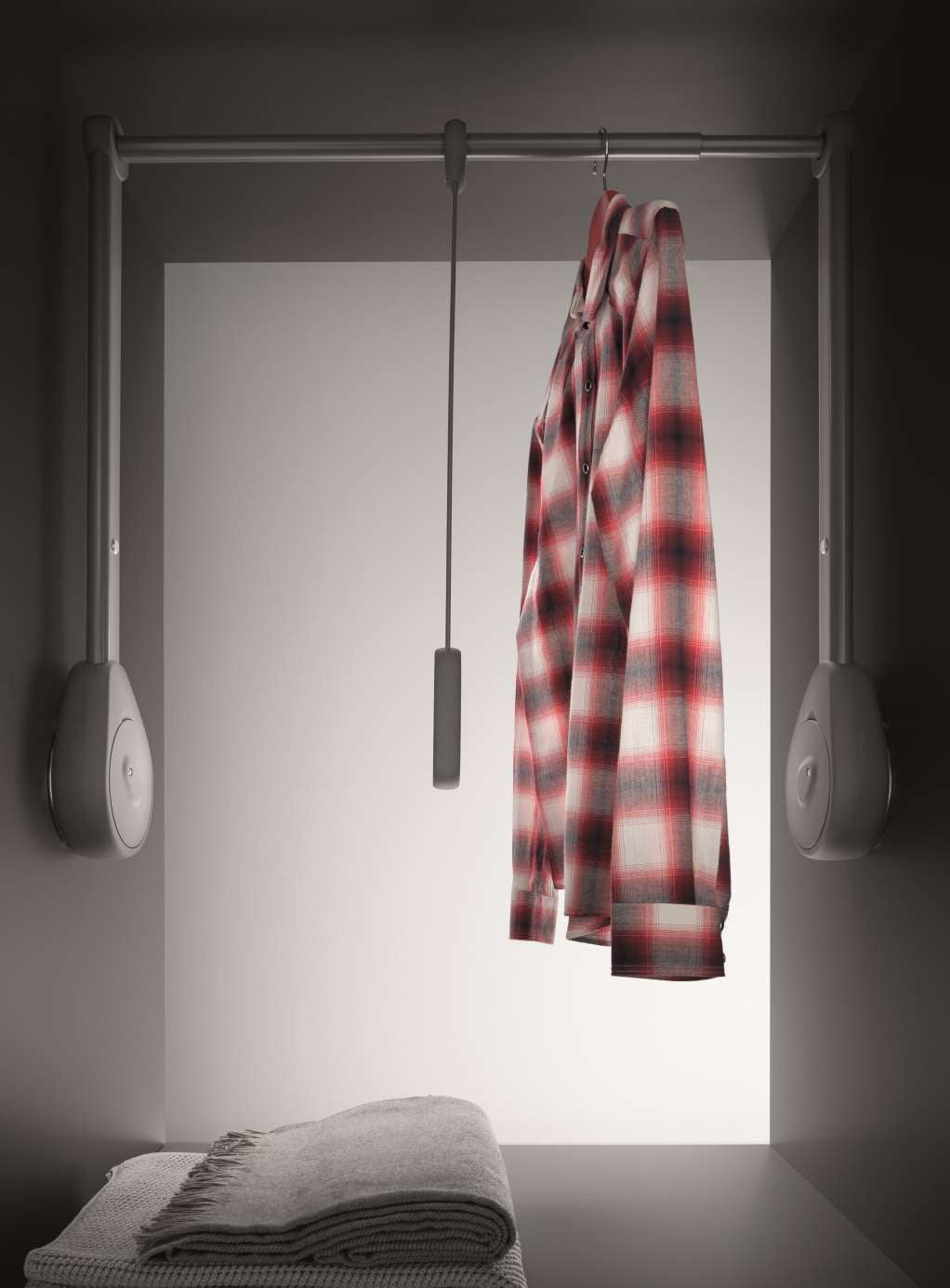

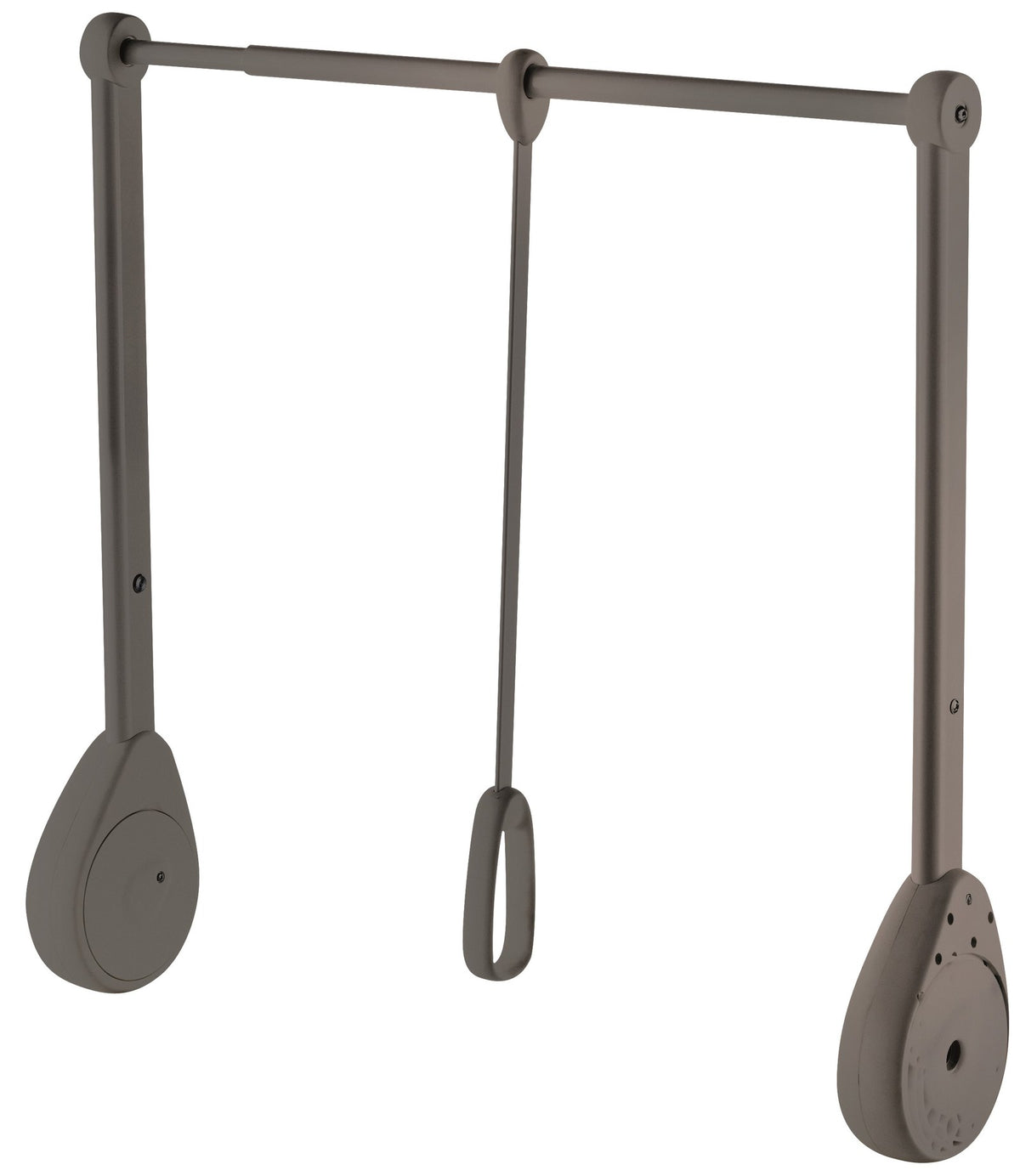

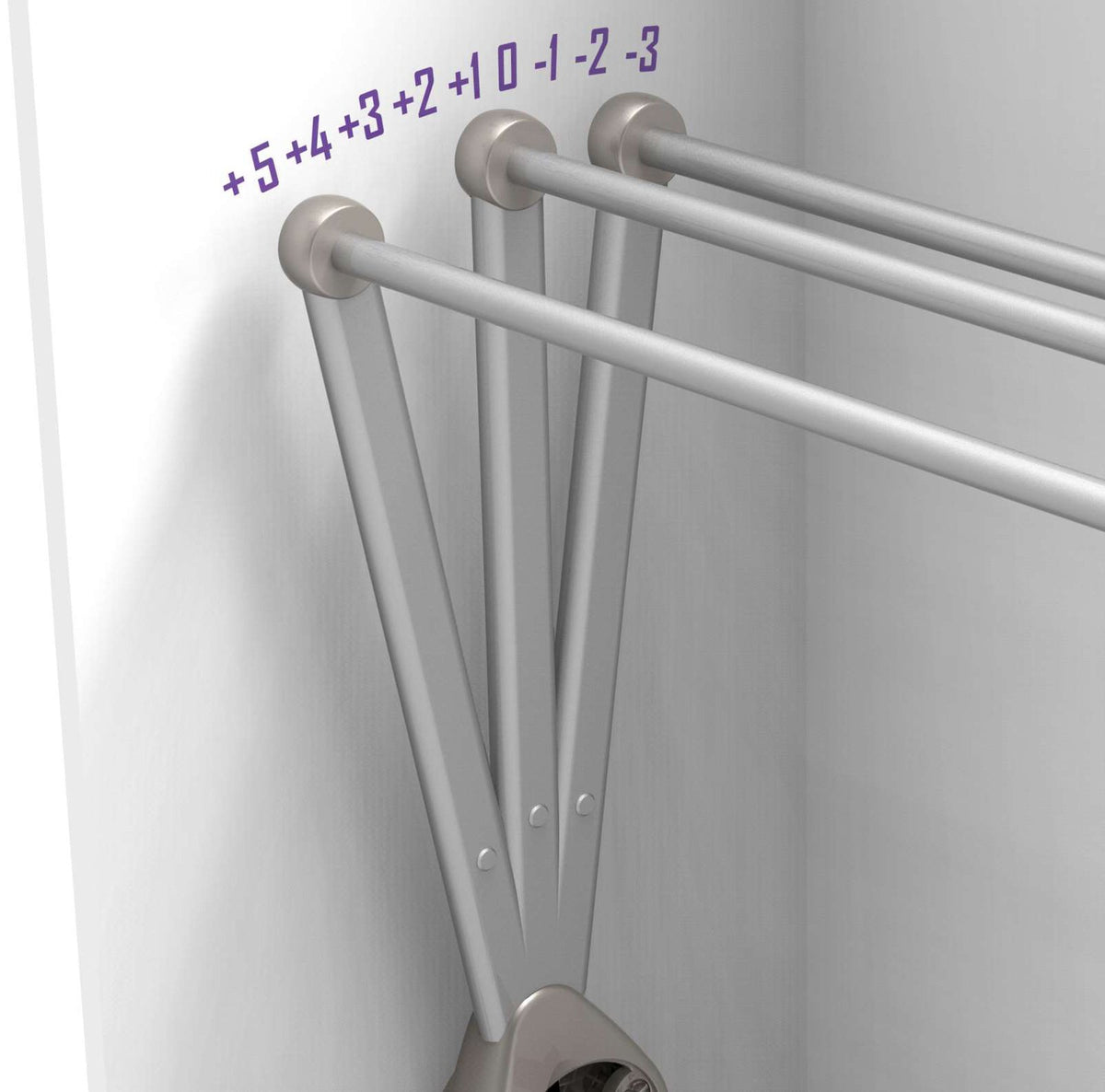

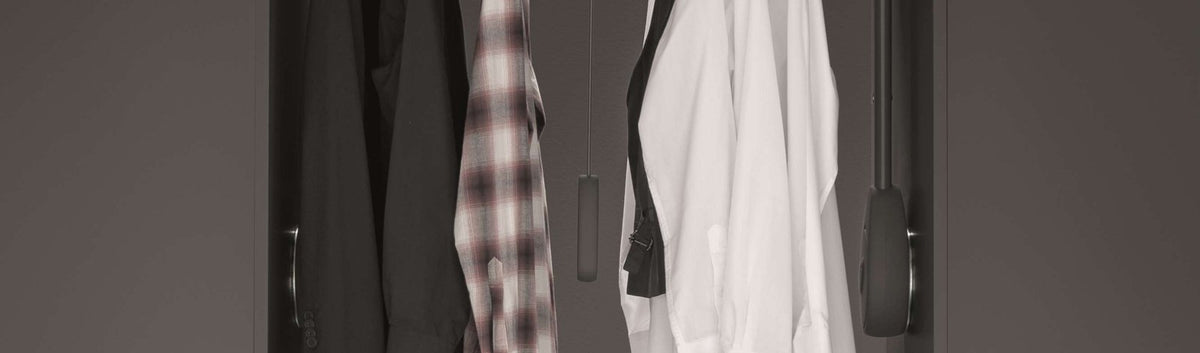

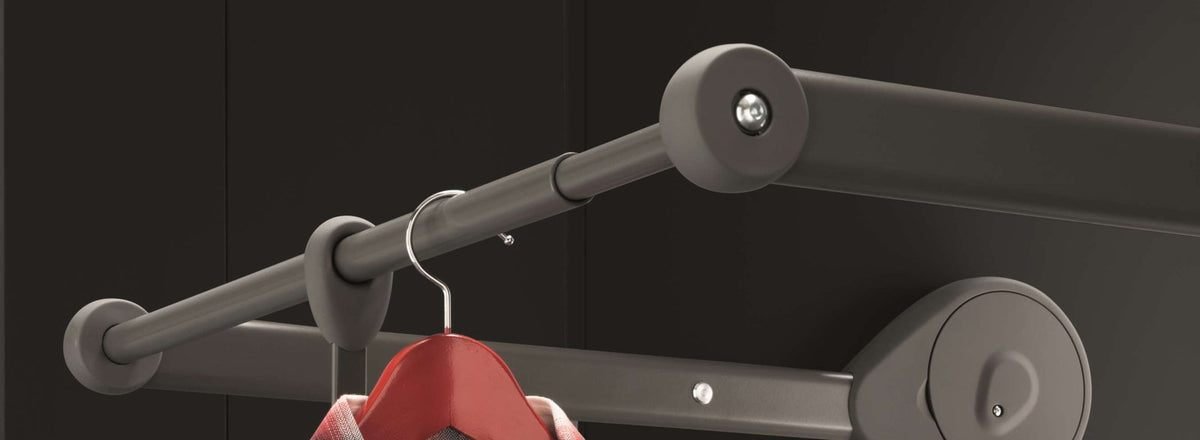

The high rail in a tall wardrobe is dead storage for anyone who can't reach it. AMBROGIO mounts to the side panels and swings the rail down and forward on an ergonomic pull handle; a self-assisted mechanism takes the weight on the way back up, and soft-close stops it slamming home. Tilt regulation spreads the load evenly across the whole mechanism rather than concentrating it on one arm, and the hanger pipe length adjusts without tools. Every fixing screw is concealed once it's in.

AMBROGIO 側裝下拉式衣櫃升降拉架：高身衣櫃上層掛衣杆往往難以觸及，本產品側裝於櫃體側板，掛衣杆可循弧線下拉至就手高度。配合符人體工學的拉手，上升時設自拉協助功能分擔重量，並帶緩衝關閉。傾斜調節令整個系統的力度分佈更平均，掛衣杆長度亦可簡易調節。安裝螺絲完全隱藏，外觀簡潔。

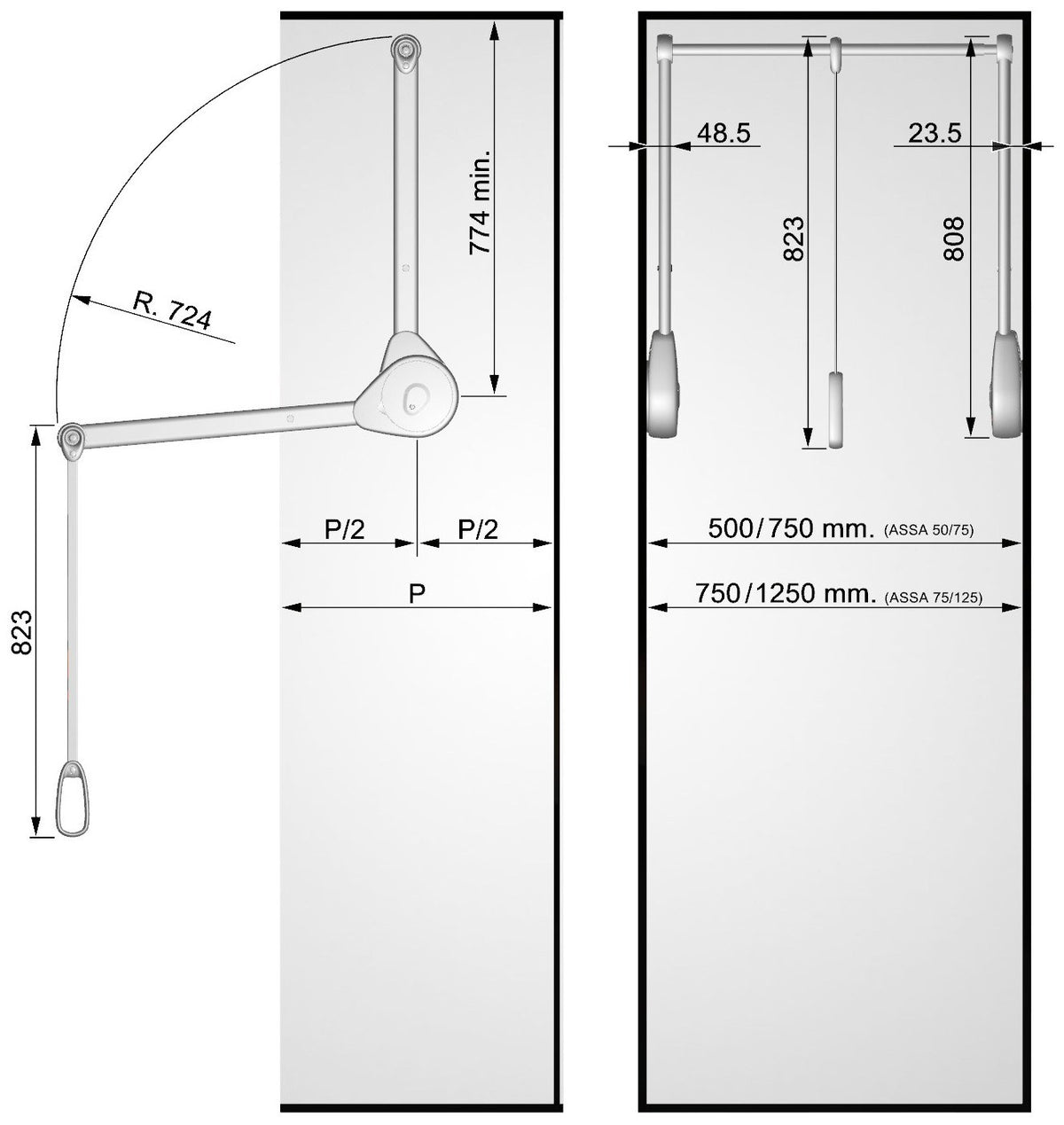

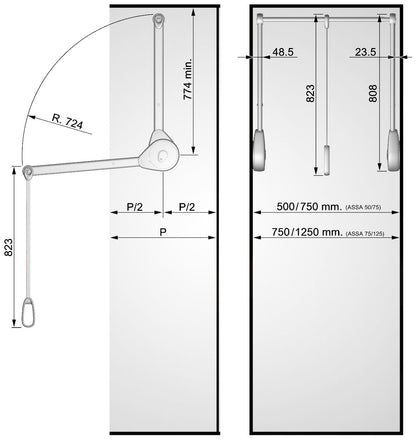

Choose by internal cabinet width 按櫃體內寬選擇

Measure the internal width between the wardrobe side panels, not the external carcase, then pick the matching size. Each model adjusts across its own range.

• HVB-WH50/75M — internal width 500–750 mm | 適用櫃體內寬 500–750 mm
• HVB-WH75/125M — internal width 750–1250 mm | 適用櫃體內寬 750–1250 mm

請量度衣櫃兩側板之間的內寬（非櫃體外寬）再選擇型號，每款均可於其範圍內調節。

Technical Specifications | 技術規格

Accessory | 配件

HVB-WH50/125S — kit of 2 ABS spacers (148 dia. × 16H mm, dark grey) to pack the lift off the side panel where the carcase requires it. Sold per pair.
HVB-WH50/125S 加高墊套裝，樹脂，深灰色，148 直徑 × 16H mm，每對發售。

Applications | 應用場合

Tall wardrobes and walk-in closets where the upper rail sits out of comfortable reach — and any wardrobe designed for accessible or ageing-in-place use.
高身衣櫃及步入式衣帽間之上層掛衣位，以及需要無障礙或長者友善設計的衣櫃。

Dimensions are nominal and stated in millimetres. Please confirm the internal cabinet width and side panel construction before ordering, and note the 12 kg maximum load. | 尺寸以毫米標示並屬標稱值。訂購前請核對櫃體內寬及側板結構，並注意最大承重為 12 kg。
