BMB HKL-147/H Slam Lock Housing for Drawer with Striking Plate | 平裝式斜口彈簧門抽屜鎖外殼連鎖門板

Push it shut and it locks itself. German-brand BMB slam lock housing for drawers.

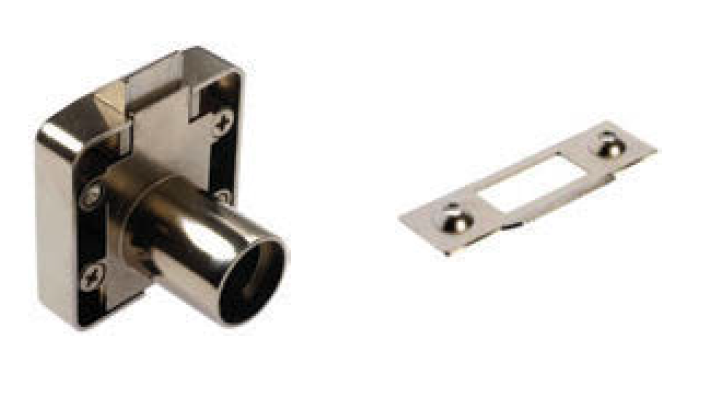

The HKL-147/H is a surface-mounted slam lock housing for drawers, supplied with its steel striking plate. The spring-loaded dead bolt snaps into the striking plate the moment the drawer is pushed closed — no need to turn a key to lock. The bolt can be set to two different modes, so the same lock serves either a self-locking drawer or a conventional key-locked one.

HKL-147/H 為平裝式抽屜彈簧鎖外殼，連鋼製鎖門板（鎖口片）。抽屜推上時，彈簧鎖栓即自動卡入鎖門板，無需轉動鑰匙即完成鎖定。鎖栓可設定為兩種模式，同一把鎖既可作自動鎖定抽屜，亦可作一般鑰匙鎖使用。

⚠️ Housing only — cylinder core and keys sold separately 只供應鎖外殼 — 鎖芯及鑰匙需另購

This item is the lock housing with striking plate only. It does not include a cylinder core or keys. Order the matching BMB cylinder core separately, so that the lock can be keyed to your master-key or keyed-alike plan.

此產品只包括鎖外殼及鎖門板，不包括鎖芯及鑰匙。鎖芯需另行訂購，以便配合總匙或同匙系統編排。

Please contact us for cylinder core options, master-keying and keyed-alike systems. | 有關鎖芯選擇、總匙及同匙系統，歡迎與我們聯絡。

Technical Specifications | 技術規格

Two locking functions | 兩種鎖定功能

Bolt pushed to the right position | 螺栓推至右邊位置：

• The latch snaps into position and locks automatically when the drawer is closed; a key is then needed to release it.
  鎖門卡上時會自動進行鎖定功能，此時必須使用鑰匙來解除鎖定功能。
• Turning the key 180° anti-clockwise holds the latch open and cancels the self-locking action.
  把鑰匙逆時針旋轉 180°，鎖門會被打開，鎖定功能則被取消。
• The cylinder core can only be installed or removed in this position, and the key can be withdrawn.
  只有在這個位置時才能裝入或拆取鎖芯及移除鑰匙。

Bolt pushed to the left position | 螺栓推至左邊位置：

• The slam latch does not lock in the open position — a key is required to lock and unlock.
  必需使用鑰匙來進行或解除鎖定功能。
• In this position the key and the core cannot be removed.
  在這個位置時不能移除鎖芯及鑰匙。

Applications | 應用場合

Office furniture, pedestal and filing drawers, cabinetry, counters and reception joinery, lockers and storage units.
辦公傢俬、活動櫃及文件抽屜、櫥櫃、櫃檯及接待處木工、儲物櫃。

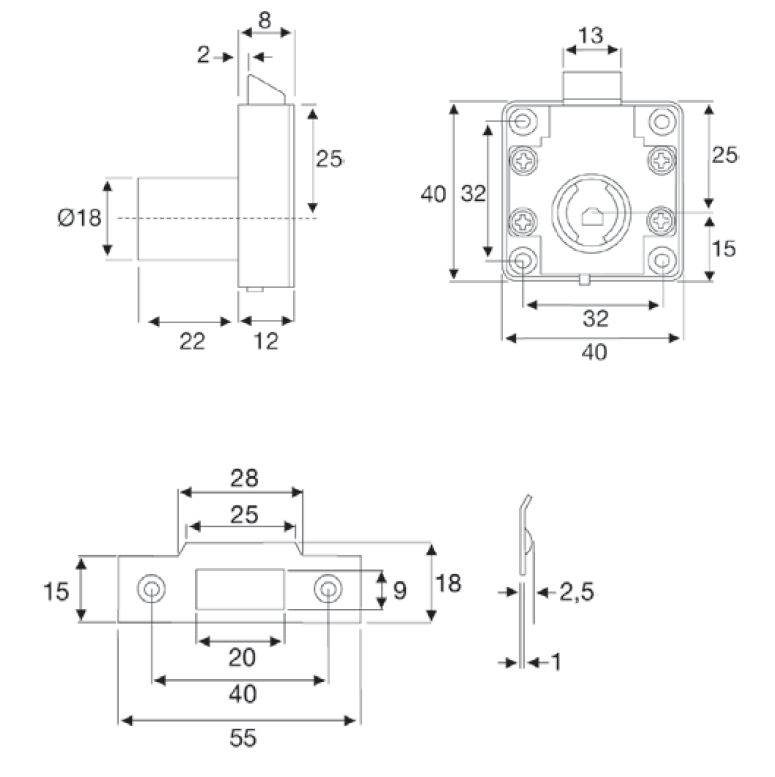

Dimensions are nominal and stated in millimetres. Please confirm board thickness and backset against your drawer construction before ordering. | 尺寸以毫米標示並屬標稱值，訂購前請按抽屜構造核對板厚及鎖邊距。
