360° Ball Bearing Aluminium Table Swivel — Lazy Susan Turntable | 360° 檯面旋轉滾珠鋁質轉盤

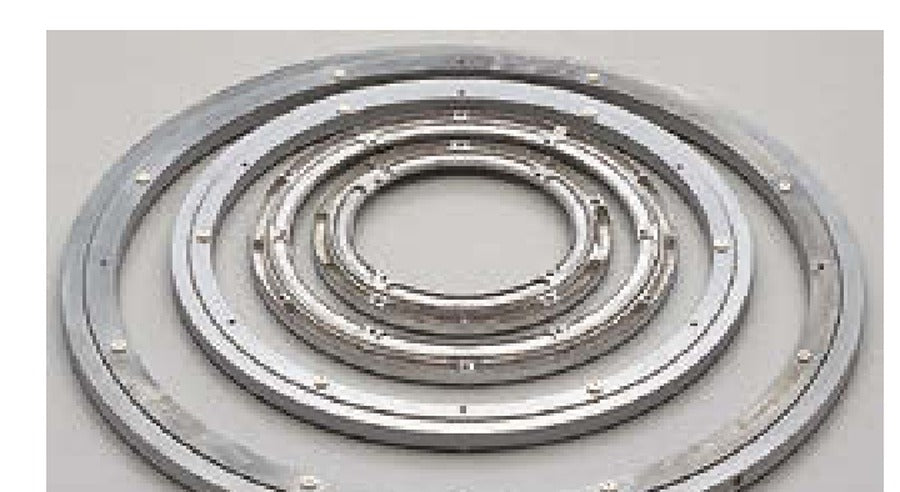

The ring that makes a table turn. Aluminium 360° ball bearing swivel in four diameters, from a small display base to a 750 mm banquet turntable.

A flat aluminium bearing ring: two machined races running on a full circuit of steel balls, drilled for screw fixing top and bottom. Sandwich it between a fixed base and the panel you want to rotate and the top turns freely through 360°, with the load carried evenly around the ring rather than on a central pin. Height is only 12–16 mm depending on size, so the turntable sits almost flush.

360° 檯面旋轉滾珠鋁質轉盤：鋁質軌道配一整圈鋼珠，上下均設螺絲孔。安裝於固定底板與旋轉面板之間，面板即可 360° 自由旋轉，載重由整圈滾珠平均承托，而非集中於中心軸。整體高度僅 12–16 mm，安裝後轉盤幾近平貼。

Choose by outer diameter 按外直徑選擇

As a rule, pick a ring roughly half to two-thirds the diameter of the panel it carries — a wider ring resists tipping when weight is loaded at the edge.
一般而言，轉盤外徑宜取旋轉面板直徑的一半至三分之二；轉盤愈闊，邊緣受力時愈不易傾側。

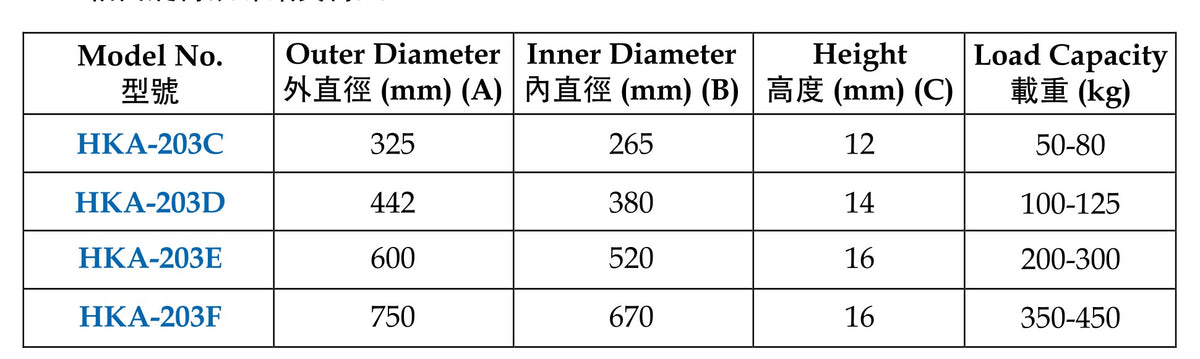

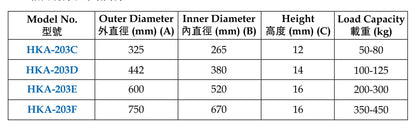

Technical Specifications | 技術規格

Applications | 應用場合

Chinese banquet and dining tables, swivelling work tables and workbenches, large display stands and retail fixtures, TV and AV units, and wooden or glass rotating tops.
中式宴會及餐檯轉盤、旋轉工作檯、大型展示架及陳列架、電視及影音櫃，以及木質或玻璃旋轉檯面。

Dimensions are nominal and stated in millimetres. Load capacity assumes the weight is distributed across the panel and the ring is fully screw-fixed to both faces. | 尺寸以毫米標示並屬標稱值。標示載重以重量平均分佈及轉盤上下均已完全螺絲固定為前提。
